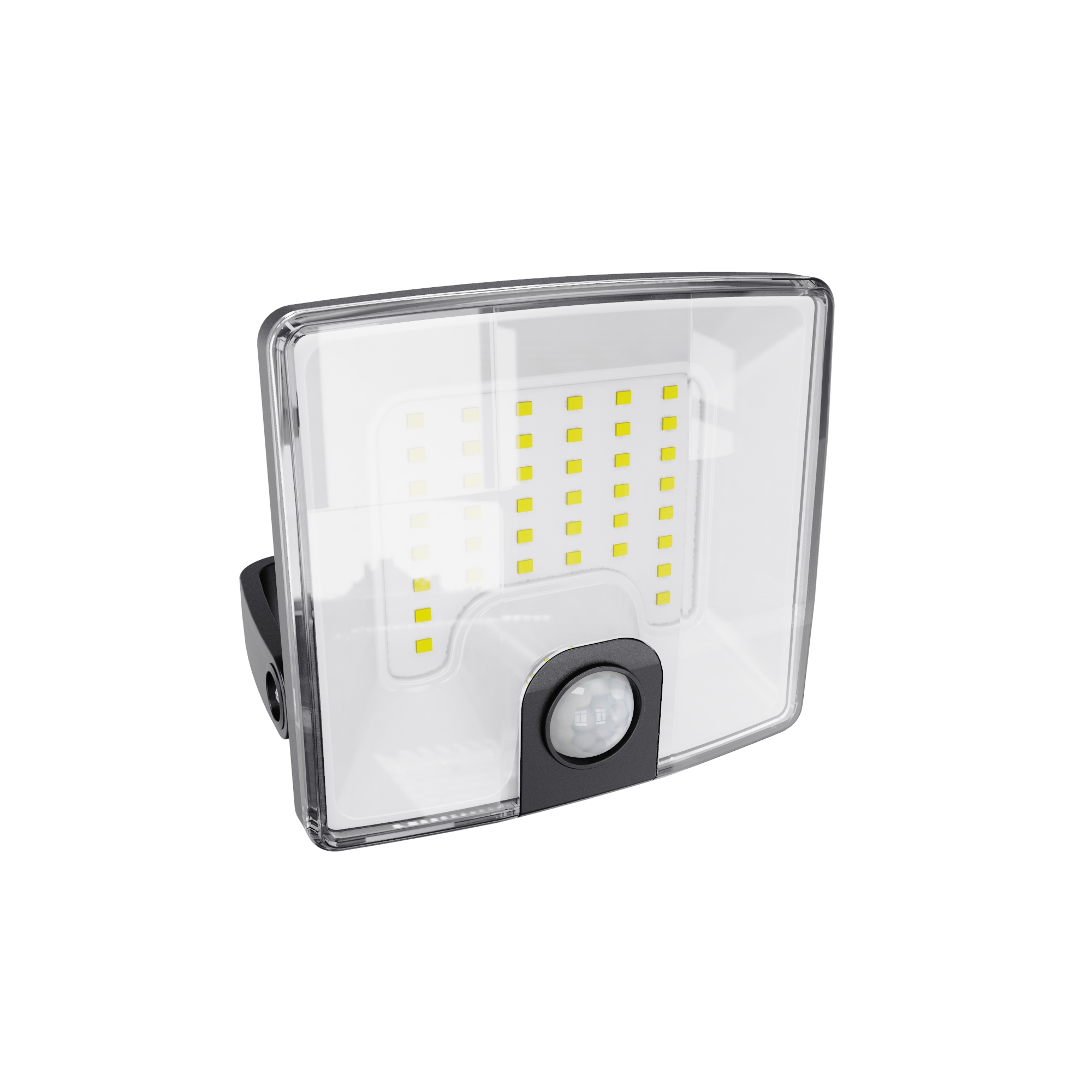

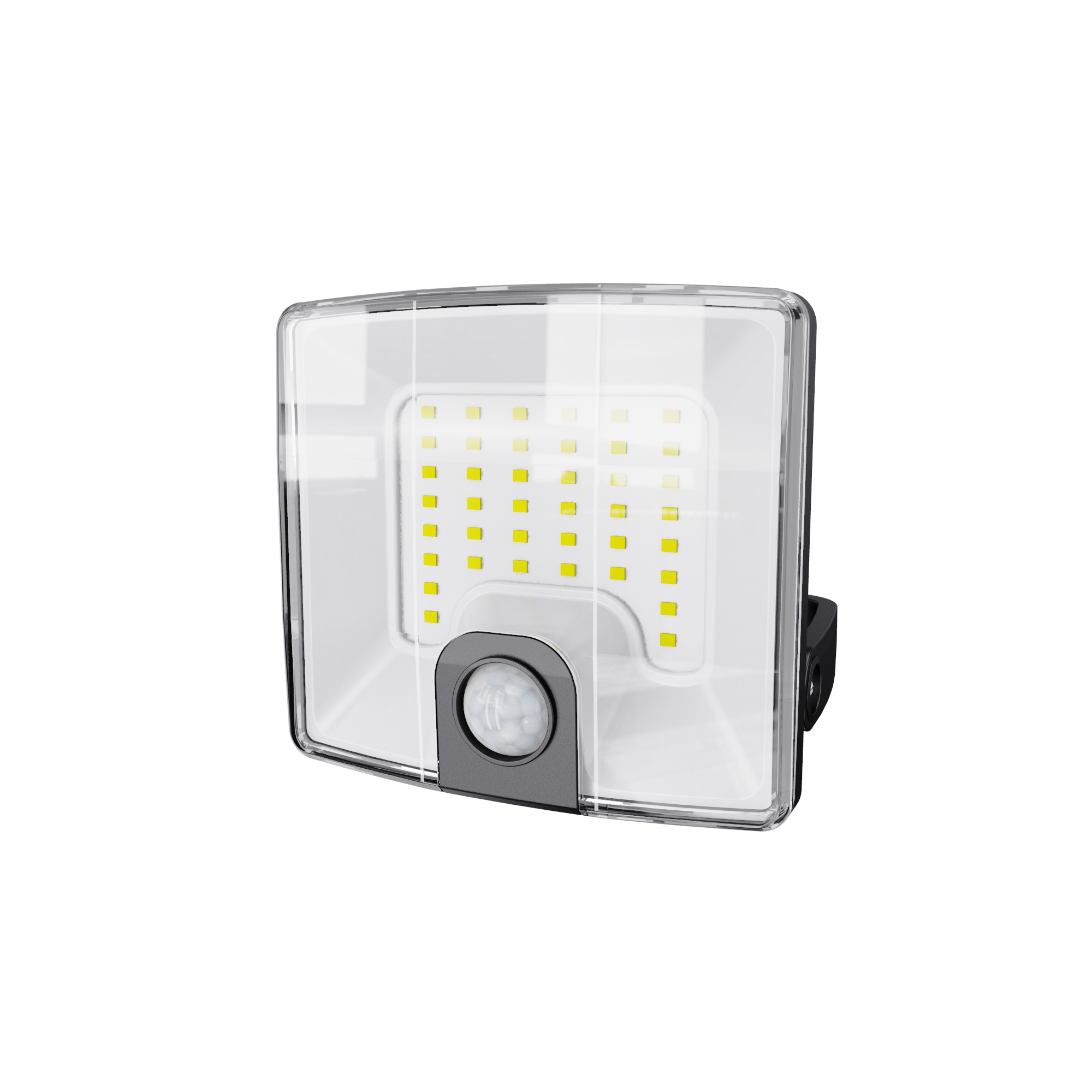

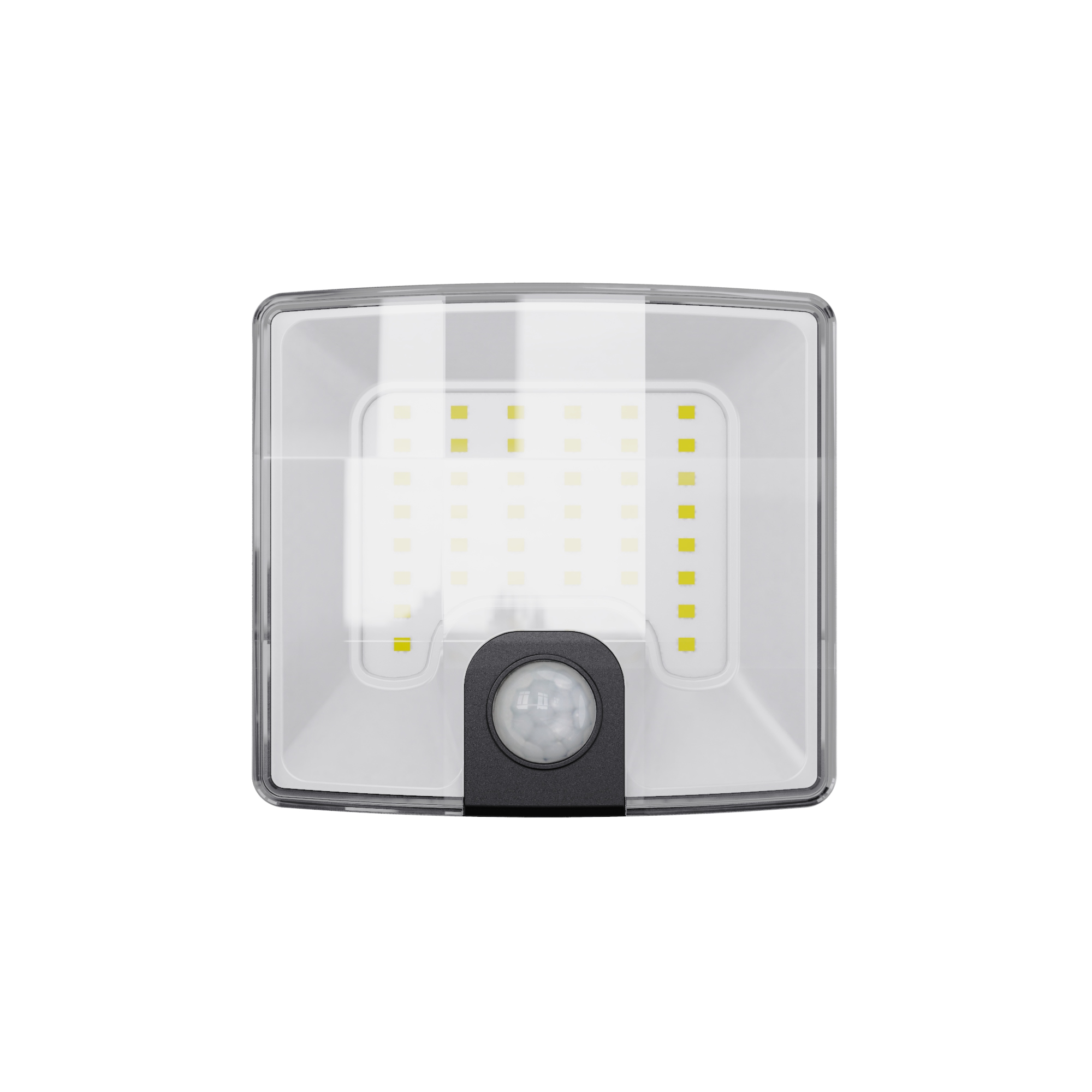

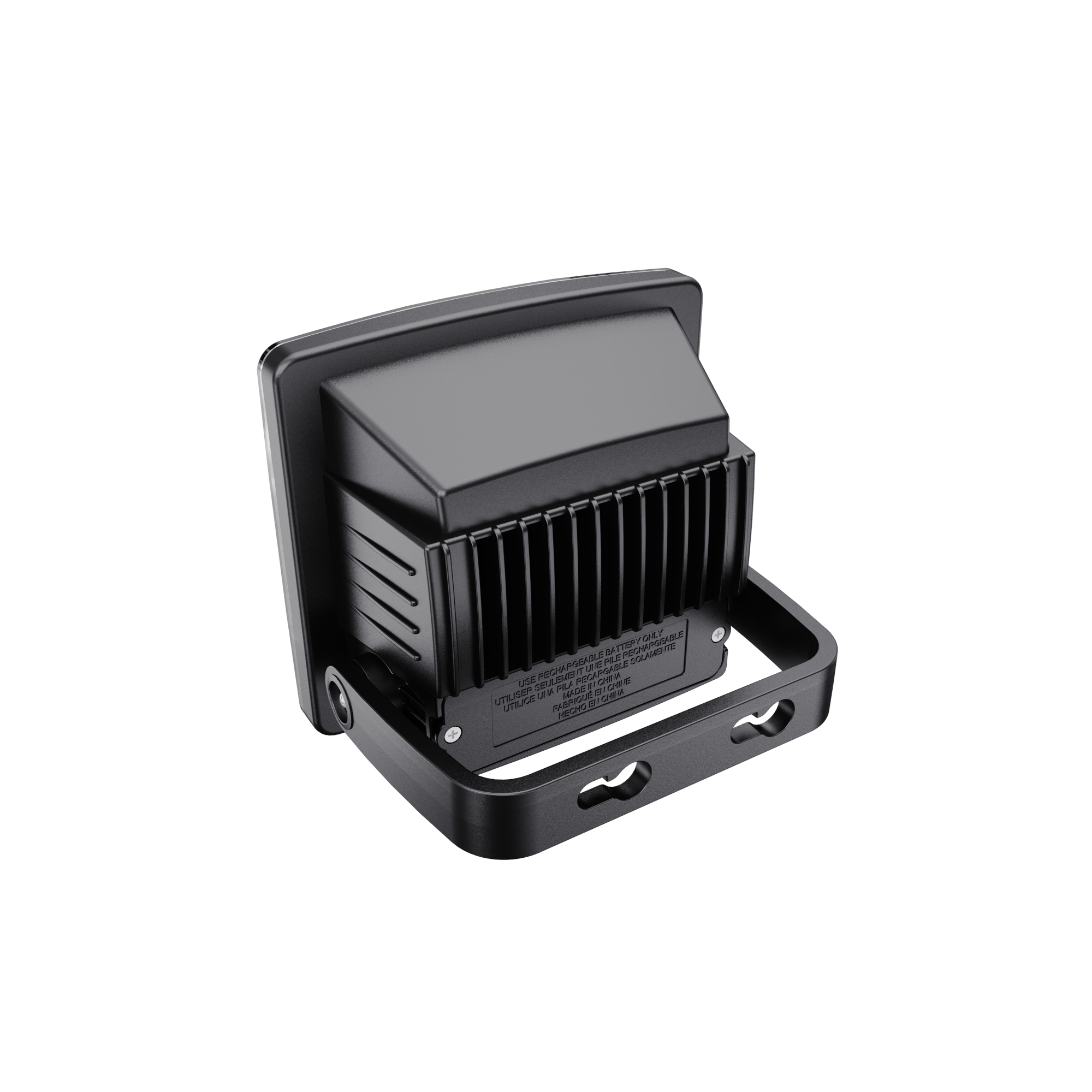

1000 Lumens Solar Motion Sensor Security Light
Size of Light:12.4*11.3*10.1cm
Size of Solar Panel:11.4*9cm
Solar Panel:Amorphous silicon
LED Color Temperature:6000~7500K
Lumen Output:Maximum 1000 lumens
Light Source: White SMD LED
Battery:Lithium rechargeable battery
Switch:Push-button ON-OFF switch
Main Material:Plastic body
Detection Range:Maximum detecting angle 120°
Detection Distance:Maximum 10 meters
Time Delay:30s
How to Install and Use Your 1000 Lumens Solar Motion Sensor Security Light: A Step-by-Step Guide
Welcome to your new 1000 Lumens Solar Motion Sensor Security Light! This easy-to-install, solar-powered light is perfect for enhancing security and visibility around your home. Follow this simple guide to set up and make the most of your light.
---
What’s in the Box?
- 1× Solar Motion Sensor Light
- 1× Mounting Bracket
- 2× Screws and Wall Plugs
- 1× User Manual
---
Step 1: Choose the Perfect Location
Pick a spot that meets these criteria:
- Receives direct sunlight for 6–8 hours daily.
- Faces the area you want to illuminate (e.g., driveway, porch, backyard).
- Is within 10 meters (33 ft) of where motion is expected (max detection distance).
- Mounted at a height of 2–3 meters (6–10 ft) for optimal motion detection.
---
Step 2: Install the Light
1. Attach the mounting bracket to your desired location (wall, post, or eave) using the included screws and wall plugs.
2. Secure the light onto the bracket until it clicks into place.
3. Make sure the solar panel faces the sun directly for best charging performance.
---
Step 3: Charge Before First Use
- Fully charge the light before turning it on. To do this:
- Leave the light in direct sunlight for 8–10 hours.
- Use the push-button ON–OFF switch to turn the light off while charging.
---
Step 4: Adjust Settings & Test Motion
- Angle Adjustment: Tilt the light head to cover the desired area (max 120° detection angle).
- Test the Sensor: Once charged, switch the light ON. Wave your hand within 10 meters—the light should turn on automatically for 30 seconds (default time delay).
---
Step 5: Customize Operation (Optional)
Your light comes with smart features:
- Dusk-to-Dawn Mode: Automatically activates at dark and deactivates at sunrise.
- Motion Sensor Mode: Triggers light only when motion is detected.
- Continuous Light Mode: Some models allow always-on low brightness mode—check your manual.
---
Tips for Best Performance
- Keep the solar panel clean—wipe dust or snow off regularly.
- Avoid installing near other light sources to prevent sensor interference.
- In winter, ensure the panel gets enough sunlight despite shorter days.
---
Troubleshooting Common Issues
❌ Light isn’t turning on:
- Ensure the switch is ON.
- Check if the battery is fully charged.
❌ Weak motion detection:
- Adjust the angle of the light.
- Remove obstacles blocking the sensor.
❌ Short lighting time:
- The battery may need longer charging due to low sunlight.
---
Technical Specifications
- Light Size: 12.4×11.3×10.1cm
- Solar Panel: Amorphous silicon (11.4×9cm)
- Lumen: Up to 1000 LM
- Color Temperature: 6000–7500K (Daylight White)
- Battery: Lithium rechargeable
- Detection Angle: 120°
- Detection Distance: 10 meters
- Delay Time: 30s
---
Need Help?
If you have any questions, refer to the user manual or contact our customer support team. We’re here to help!
Enjoy your smarter, safer, and energy-efficient outdoor lighting solution!
