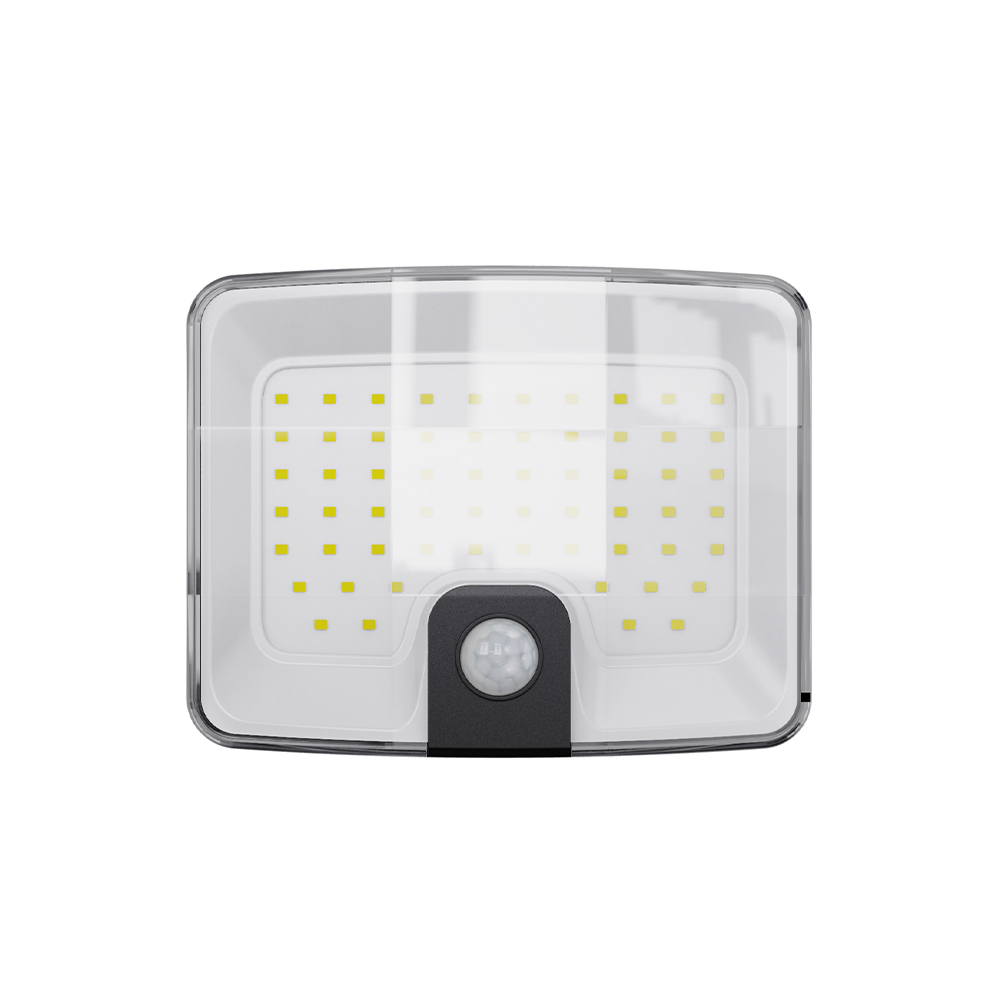

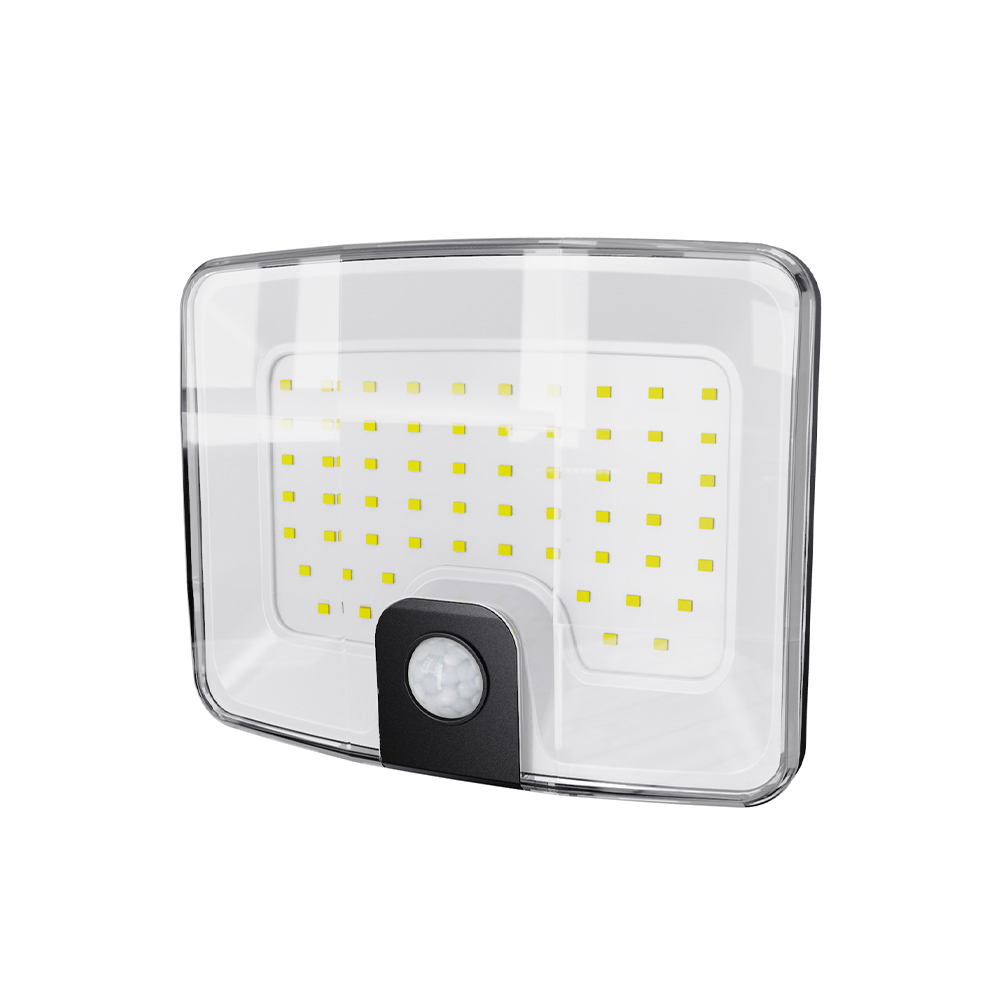

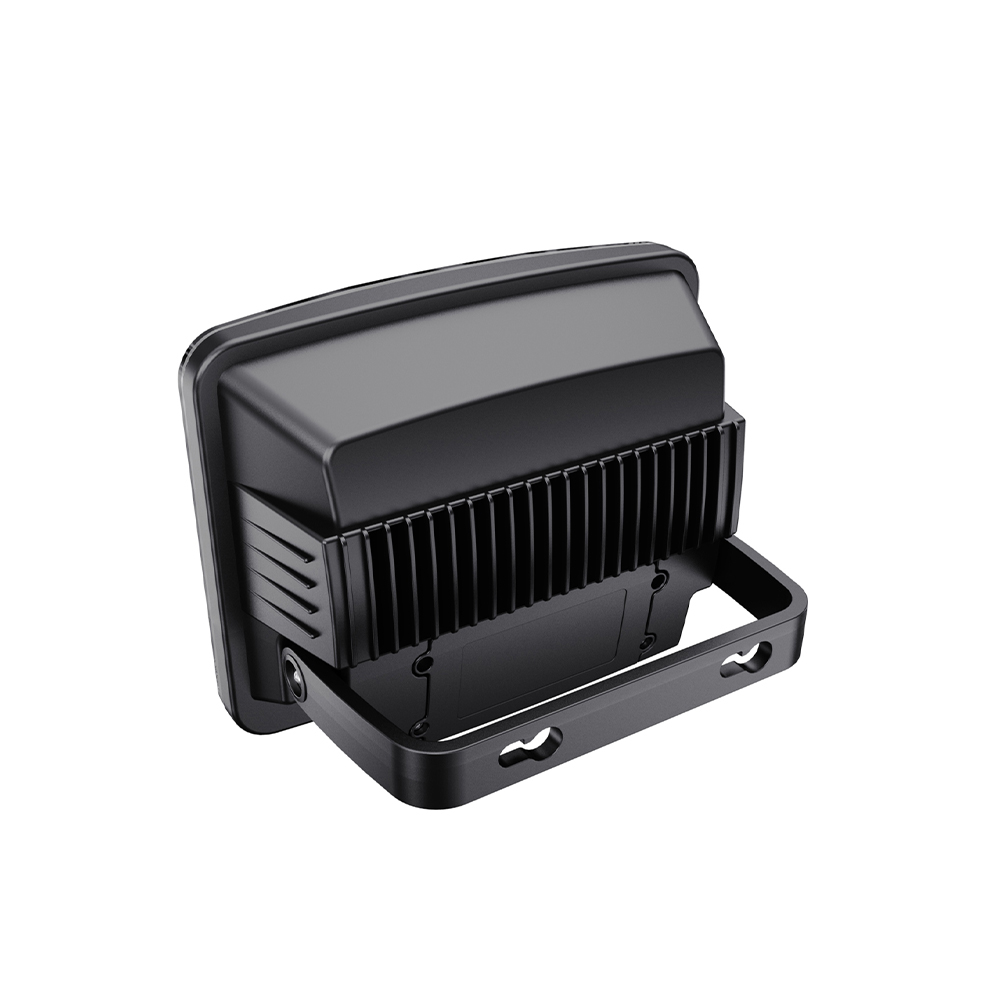

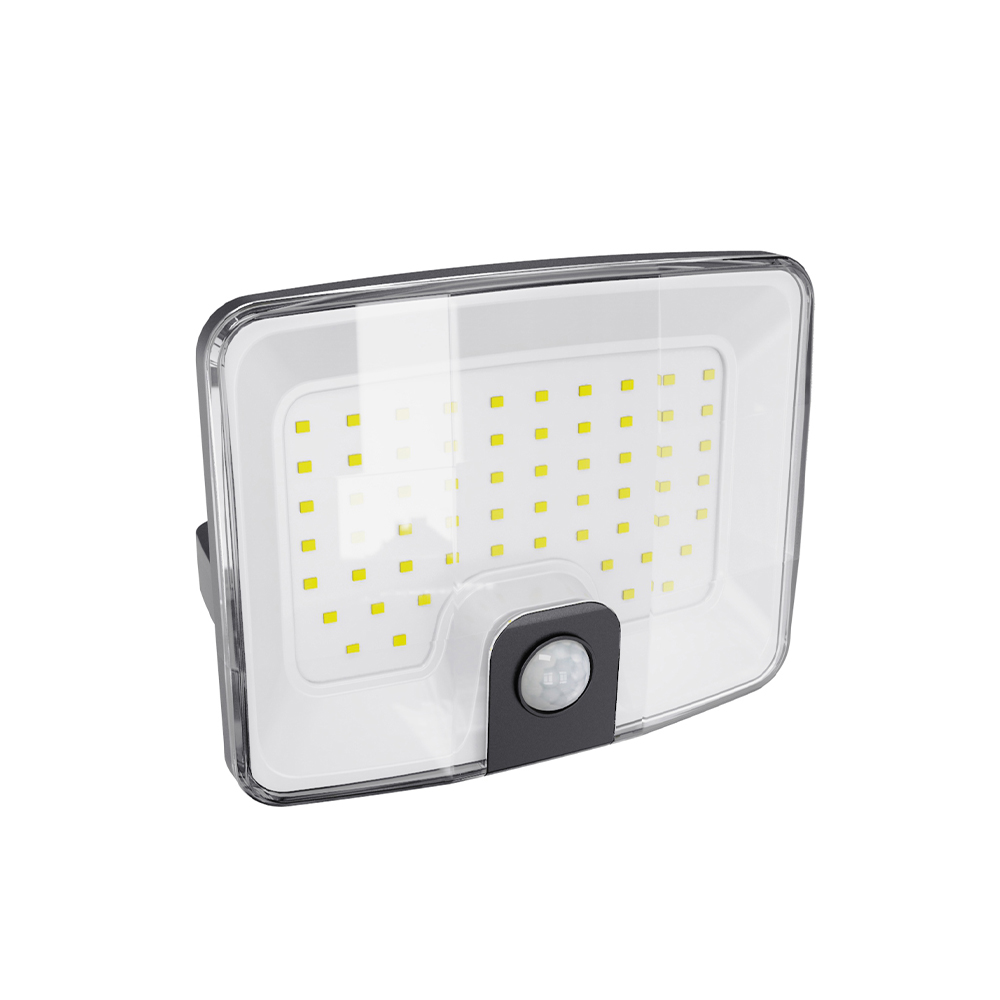

2000 Lumens Solar Motion Sensor Security Light
Size of Light:19.4*14*6.3cm
Size of Solar Panel:14.1*16.3*6.2cm
Solar Panel:Amorphous silicon
Light Source:White SMD LED
LED Color Temperature:6000~6500K
Lumen Output:Maximum 2000 lumens
Battery:Lithium rechargeable battery
Switch:Push-button ON-OFF switch
Main Material:Plastic body
Detection Range:Maximum detecting angle 120°
Detection Distance:Maximum 10 meters
Time Delay:30s
How to Install and Use Your 2000 Lumens Solar Motion Sensor Security Light
Welcome to your complete guide for setting up and maximizing the performance of your new 2000 Lumens Solar Motion Sensor Security Light. This ultra-bright, energy-efficient light is designed for hassle-free installation and powerful security coverage. Follow these simple steps to ensure optimal performance and enjoy worry-free illumination.
What’s in the Box?
Main Light Unit (19.4 x 14 x 6.3 cm)
Amorphous Silicon Solar Panel with Cable (14.1 x 16.3 x 6.2 cm)
Mounting Bracket & Hardware
User Manual
Step 1: Choose the Optimal Location
Selecting the right spot is the most critical step for your solar light's performance.
For the Solar Panel: This is your 1 priority. The panel MUST be placed where it will receive maximum direct sunlight throughout the day. Avoid any areas that are shaded by trees, roof overhangs, or other structures for extended periods. Even a few hours of shade can significantly impact charging.
For the Light: Mount the main light unit 6-10 feet (2-3 meters) above the ground, aiming to cover the area you want to protect, such as a driveway, porch, or backyard gate.
Sensor Considerations: The motion sensor has a 120° detection angle and a range of 10 meters (33 feet). Position the light so that the sensor covers the main path of approach (e.g., across a walkway, not directly down it) for best detection.
Step 2: The Crucial First Charge
Do not skip this step! A full initial charge is essential for long-term battery health and performance.
1. Before mounting anything, find a sunny spot outdoors.
2. Ensure the ON/OFF Switch on the light is in the OFF position.
3. Connect the solar panel cable to the light.
4. Lay the solar panel in direct, unobstructed sunlight and let the lithium battery charge for a full 24-48 hours. This ensures the battery reaches a full charge before its first use.
Step 3: Install the Mounting Bracket
1. Hold the mounting bracket against the wall in your chosen location for the light unit.
2. Use a pencil to mark the screw holes.
3. Drill pilot holes (if needed for your wall material).
4. Secure the bracket firmly using the provided screws and anchors.
Step 4: Mount the Light and Solar Panel
1. Connect the Wires: Plug the solar panel cable into the port on the back of the light.
2. Attach the Light: Hang the main light body onto the mounted bracket.
3. Secure the Solar Panel: Fix the solar panel to its pre-chosen sunny location using the provided hardware. Ensure it is facing the sun and angled for optimal exposure.
Step 5: Power On and Configure
1. Flip the ON/OFF switch to the ON position. The light is now in motion-sensing mode.
2. Adjust the Sensor: Manually angle the sensor head to cover your desired detection zone.
3. Test the Light: Wait for nightfall or cover the solar panel with your hand to simulate darkness. Walk through the detection area. The powerful 2000-lumen LEDs should activate automatically, providing brilliant white light (6000-6500K) for about 30 seconds after motion is no longer detected.
Pro Tips for Maximum Performance & Longevity
Panel Maintenance: Gently wipe the solar panel with a soft, damp cloth every few months to remove dust, pollen, and bird droppings. A clean panel charges much more efficiently.
Seasonal Awareness: In winter, snow can block the panel. Install it at a steeper angle if possible so snow slides off easily. Also, be aware that shorter winter days mean less charging time.
Avoid Nuisance Triggering: Position the sensor so it doesn't directly face a busy street or heat source (like a grill) to minimize false activations.
Battery Care: The built-in lithium battery performs best when kept charged. During extended periods of cloudiness, you may want to temporarily switch the light to OFF to conserve battery for when you need it most.
Frequently Asked Questions (FAQ)
Q: How long does the light stay on after detecting motion?
A: The default time delay is set to approximately 30 seconds.
Q: Why didn’t my light turn on last night?
A: The most common cause is an insufficiently charged battery. Ensure the solar panel is in full, direct sunlight all day and is clean. Double-check that the power switch is in the ON position.
Q: Can I leave the light on all the time?
A: No, this model is designed specifically for motion-activated operation to conserve energy. It does not have a constant 'ON' mode.
Q: What is the advantage of an 'Amorphous Silicon' solar panel?
A: Amorphous silicon panels are more efficient than standard crystalline panels in low-light and cloudy conditions, meaning your light will charge better on overcast days.
Q: How long will the light run on a full charge?
A: Runtime depends on how many times it is triggered. With a full battery, it can typically provide hundreds of motion-activated activations throughout the night.
Enjoy the powerful, eco-friendly security and convenience provided by your new solar light!
