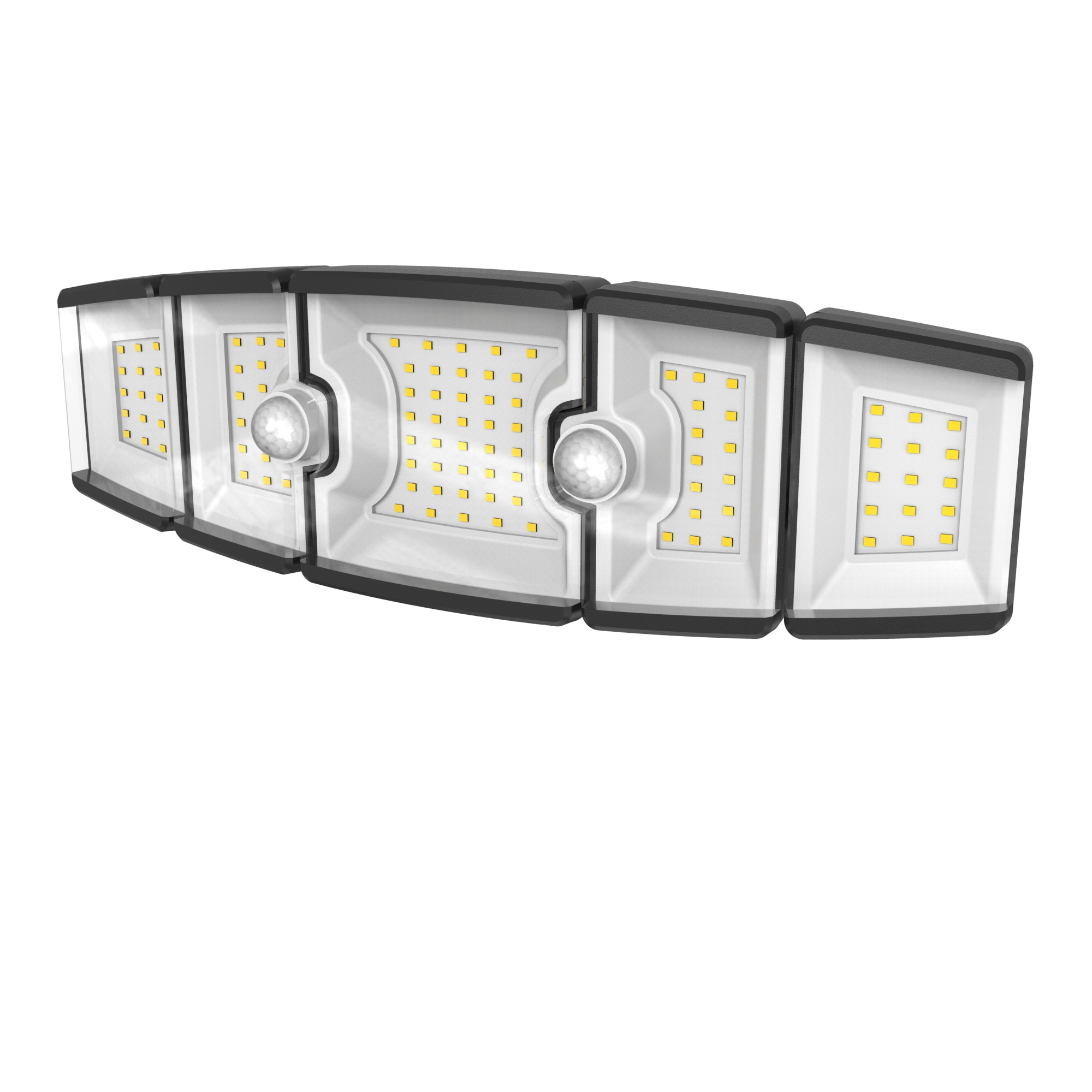

Five Head Corner Mount Solar Motion Sensor Security Light with Dual PIR Sensor
Size of Light:38.5*12.1*11.6cm
Size of Solar Panel:20.9*22.5*11.6cm
Solar Panel:Amorphous silicon
Light Source:White SMD LED
LED Color Temperature:6000~6500K
Lumen Output:Maximum 3000 lumens
Battery:Lithium rechargeable battery pack
Switch:Push-button ON-OFF switch
Main Material:Plastic body
Detection Range:Maximum detecting angle 240°(2*120° PIR motion sensor)
Detection Distance:Maximum 10meters
Time Delay:30s
Mounting Method:Wall mount or corner mount by a same bracket
Complete Setup Guide: Five Head Corner Mount Solar Motion Sensor Security Light with Dual PIR Sensor
Welcome to your comprehensive installation guide for the advanced Five Head Corner Mount Solar Motion Sensor Security Light with Dual PIR Sensor. This innovative security light offers exceptional 240° coverage and flexible corner mounting options. Follow our detailed instructions to ensure optimal performance and maximum security coverage for your property.
What's Included in Your Package

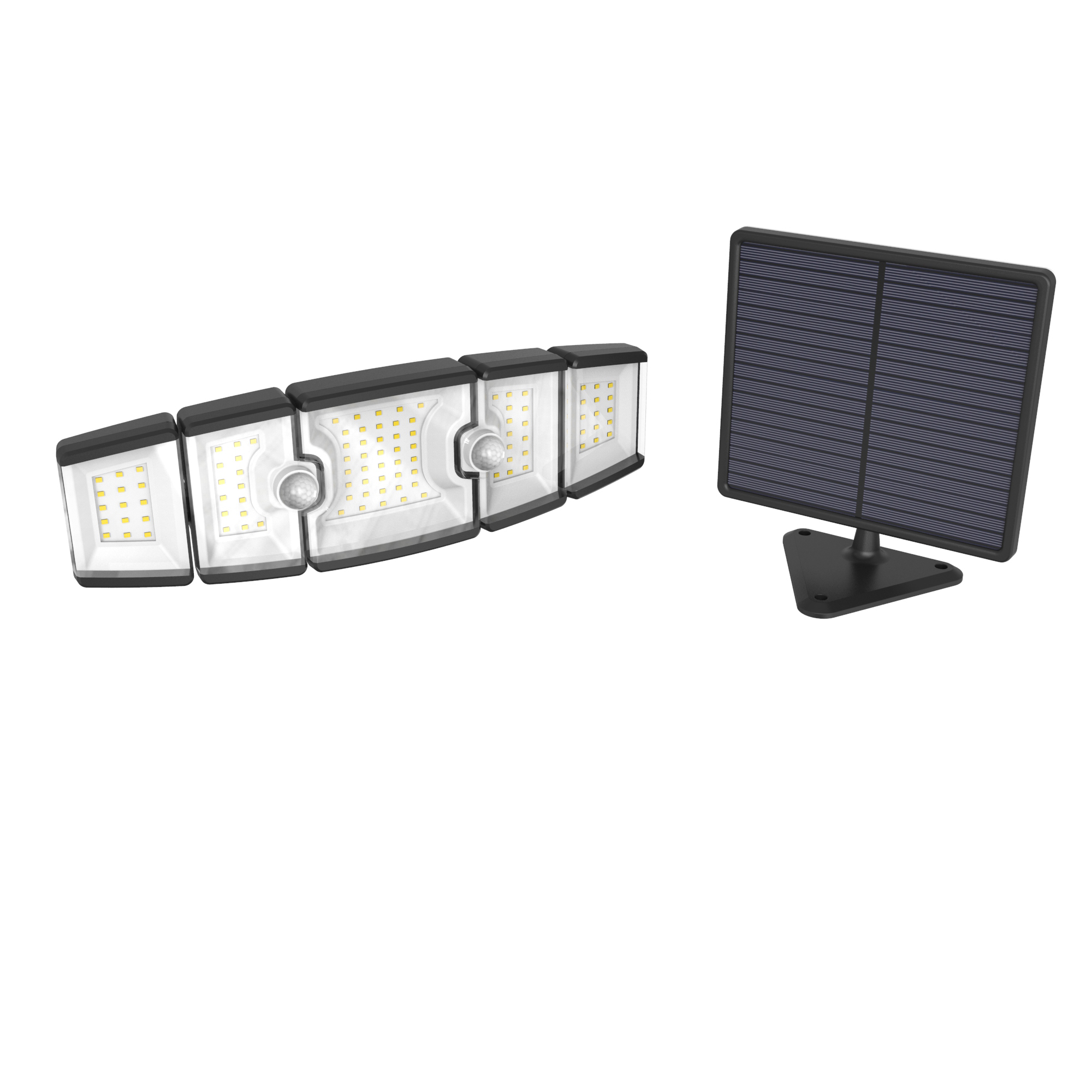

Five Head Corner Mount Security Light Unit (38.5 x 12.1 x 11.6 cm)
High-Efficiency Amorphous Silicon Solar Panel (20.9 x 22.5 x 11.6 cm)
Universal Mounting Bracket for Wall/Corner Installation
Complete Hardware Kit
Comprehensive User Manual
Step 1: Strategic Location Selection
Choosing the optimal location is crucial for maximizing performance:
Solar Panel Placement: Position where it receives maximum direct sunlight throughout the day. Amorphous silicon panels perform excellently in various light conditions but require adequate daily exposure.
Corner Mount Advantage: Utilize the corner mounting capability to maximize the exceptional 240° detection coverage from the dual PIR sensors.
Height Optimization: Install 7-12 feet above ground level for optimal coverage of driveways, yard areas, or property corners.
Step 2: Essential Initial Charging
CRITICAL FIRST STEP: Complete full charging before installation:
1. Ensure the ON/OFF switch is in OFF position
2. Connect the solar panel to the light unit
3. Place the solar panel in direct, unobstructed sunlight
4. Allow the lithium battery pack to charge for 24-48 hours
5. Do not activate the light during this initial charging period
Step 3: Mounting Installation Process
For Corner Mounting:
1. Position the universal bracket on the chosen corner
2. Mark and drill pilot holes for secure installation
3. Secure the bracket using appropriate anchors for your wall material
4. Hang the main light unit onto the bracket
For Wall Mounting:
1. Follow similar steps as corner mounting
2. Adjust the bracket for flat surface installation
3. Ensure the unit is level and secure
Step 4: Solar Panel Installation
1. Mount the solar panel in its predetermined sunny location
2. Ensure the panel faces south for maximum sun exposure (in northern hemisphere)
3. Adjust the angle for optimal seasonal performance
4. Secure all connections and weather-proof the installation
Step 5: Configuration and Adjustment
1. Power On: Switch the unit to ON position
2. Head Adjustment: Position each of the five light heads for optimal area coverage
3. Sensor Alignment: The dual 120° PIR sensors automatically create 240° coverage - ensure no obstructions block detection
4. Test Operation: Walk through detection zones to verify proper activation
Performance Optimization Tips
Dual Sensor Advantage: The dual PIR sensors provide comprehensive 240° coverage, eliminating blind spots typical of single-sensor units
Panel Maintenance: Clean the amorphous silicon panel monthly with a soft, damp cloth for optimal charging efficiency
Seasonal Adjustment: Modify panel angle seasonally for best sun exposure
False Trigger Prevention: Ensure sensors aren't facing heat sources or reflective surfaces
Troubleshooting Guide
Q: Why is my light not activating properly?
A: Verify complete initial charging, check switch position, and ensure solar panel connection is secure
Q: How does the 240° detection compare to standard sensors?
A: Dual 120° PIR sensors provide superior coverage compared to traditional single-sensor units, offering complete corner protection
Q: Can I adjust the detection sensitivity?
A: The sensors are preset for optimal performance at up to 10 meters distance
Q: What makes corner mounting advantageous?
A: Corner mounting maximizes the 240° coverage capability, providing protection for two sides of your property simultaneously
Advanced Features Utilization
Five Head Design: Adjust each head independently for customized lighting coverage
Dual PIR Technology: Enjoy comprehensive detection without blind spots
Corner Optimization: Perfect for property perimeters, driveway corners, and large area coverage
Amorphous Silicon Efficiency: Superior performance in various weather conditions
Maintenance Recommendations
1. Regular panel cleaning for optimal charging
2. Periodic check of all mounting hardware
3. Seasonal adjustment of light head positions
4. Battery performance monitoring after extreme weather conditions
Enjoy the superior coverage and flexibility of your Five Head Corner Mount Solar Security Light with Dual PIR Sensor!
